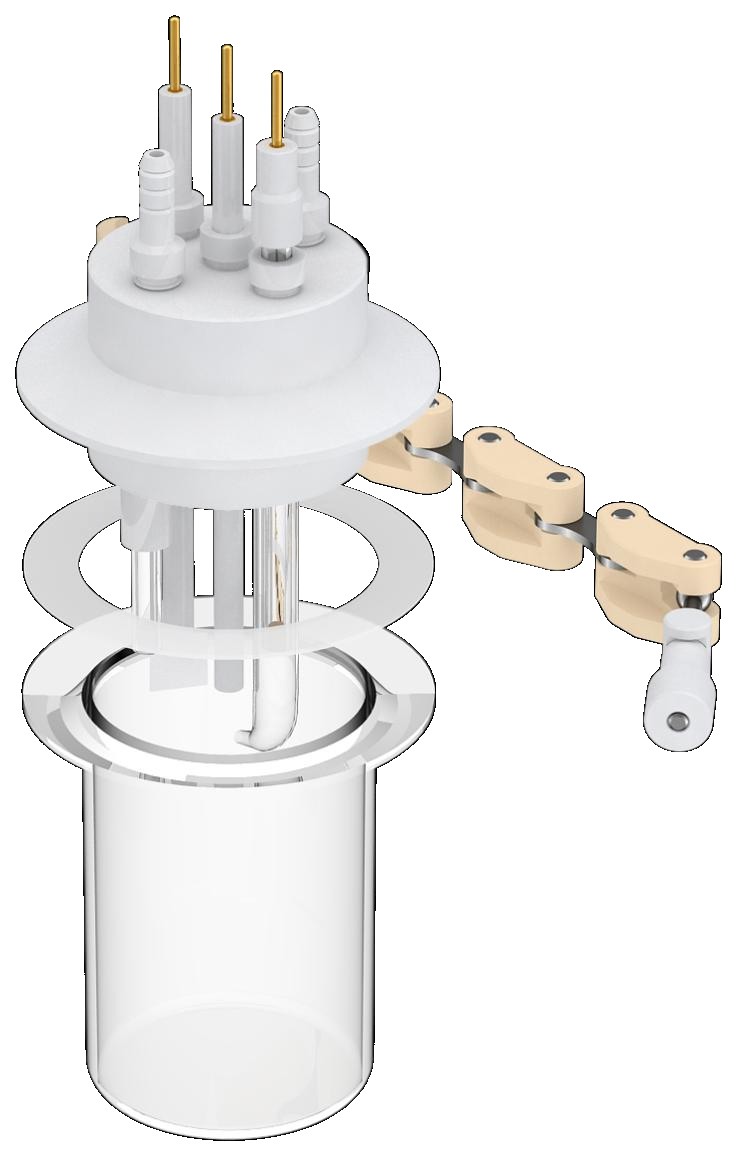

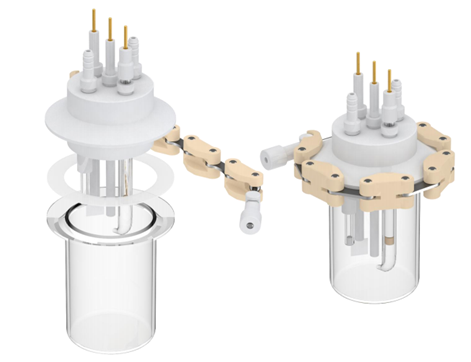

Cylindrical quartz electrochemical cell (relatively sealed), C017-1

Description:

• Cell body fused entirely with quartz, without any adhesives.
• Quartz of the cell provides over 95% light transmittance.
• The cell’s lid is made of polytetrafluoroethylene (PTFE).
• The electrochemical cell is a sealed system, equipped with gas inlet and outlet devices.
• • The reference electrode and counter electrode of the electrochemical cell generally chooses a conventional reference electrode with a diameter of 6mm. The working electrode of the electrochemical cell chooses an electrode or electrode clip with a diameter of 6mm.
• Electrodes for the cell need separate purchase.
• The quartz sealing part of the electrochemical cell adopts a flange design, and the cover made of PTFE is screwed up and down, and the sealing ring is squeezed to seal.
• The electrodes of the electrochemical cell are plugged in and out through the earphone jack on the cover, so that the electrode system is absolutely sealed.

Dimension:
