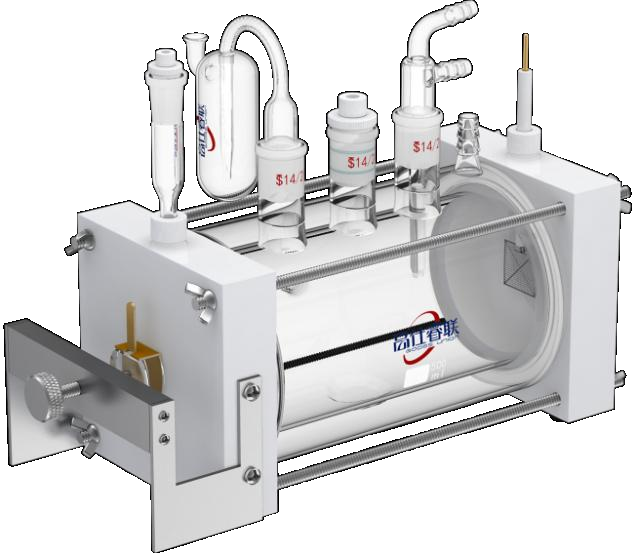

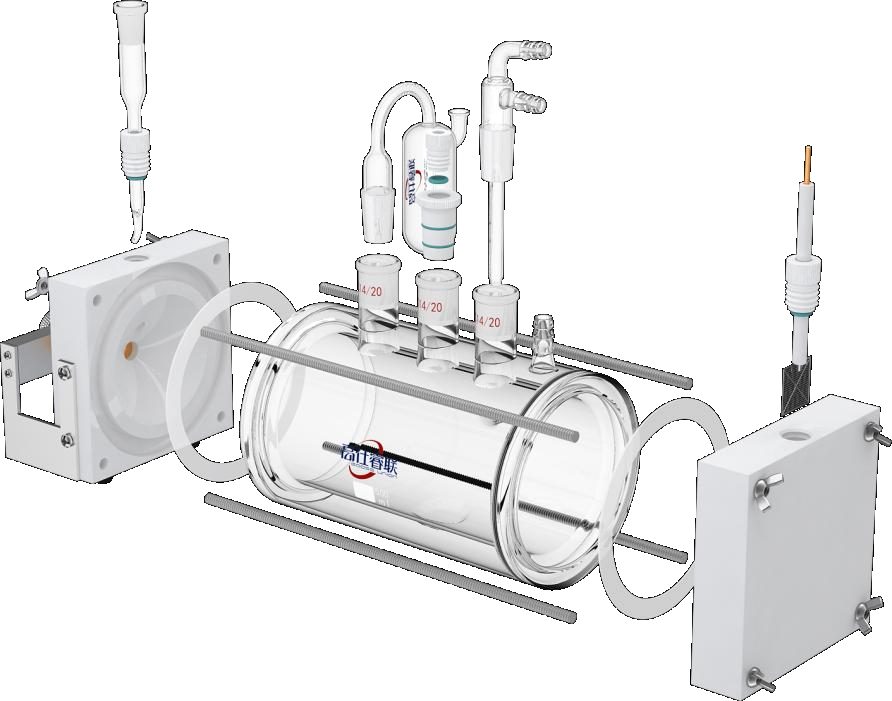

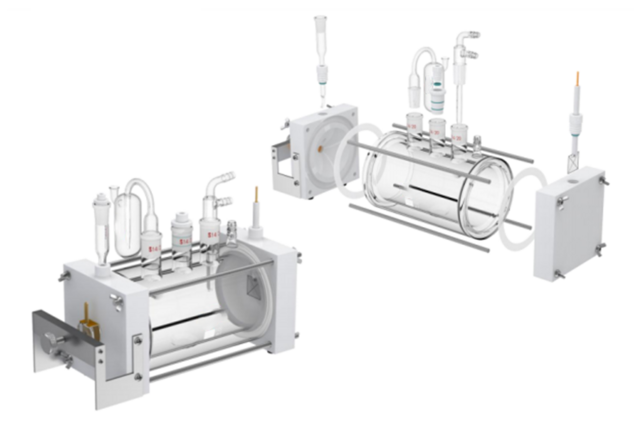

Plate corrosion test cell, C010

Description:

• Cell material: High-purity borosilicate glass.
• The working electrodes of the electrochemical cell are sheet electrodes, allowing easy sample installation, removal, and handling.
• The side of the cell features a circular hole with a fixed area of 1 cm² (customizable size upon request) and a sealable O-ring.
• The conducting connection of the working electrode employs gold-plated copper strips for sample conductivity, providing corrosion resistance and aesthetics.
• The sample fixation support of the cell is made of 316F stainless steel, combining aesthetics with corrosion resistance.
• To enhance experimental diffusion, a stirring bar placement is added beneath the cylindrical cell body. Placing the stirring bar in the cell and positioning the cell on a magnetic stirrer achieves magnetic stirring.
• The counter electrode of the cell is paired with a 20×20 platinum mesh electrode.
• To optimize experimental results, a dedicated salt bridge (filled with saturated potassium nitrate solution) is provided for the reference electrode.
• For corrosion experiments it is needed to avoid chloride ions.

All sizes listed are common sizes, can be customized according to requirements.
