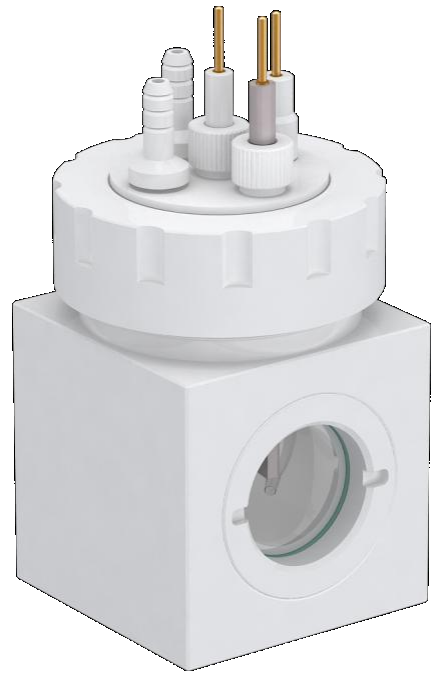

Single-cell full PTFE photoelectrochemical cell (relatively sealed), C026-1

Description:

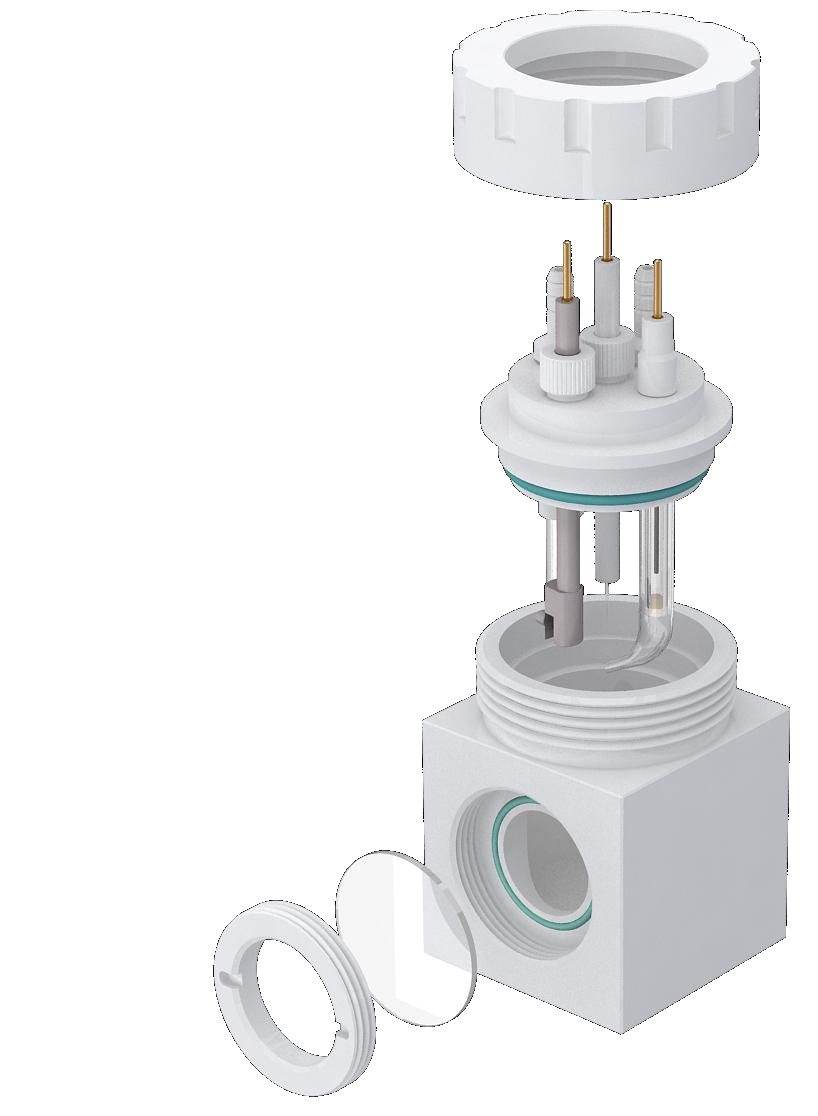

• The photo-electrochemical cell body is made of PTFE. Designed with an external threaded port. The top electrodes holder is 360-degree rotatable, allowing precise alignment of electrodes with the channels (generally parallel to the membrane). lid to seal
• The optical window of the electrochemical cell is made of quartz, with a transmittance >95%.
• Electrodes length need to be customized based on dimension of the cell, and the diameter of the electrodes is 6mm.
• This cell is often used in a 3-electrode system, with a customizable volume of 30ml to 500ml.
• Electrode area seals via O-rings and screws.
• The electrochemical cell is equipped with a bubbler that can aerate below the liquid surface, creating different atmospheres for various experiments.
• This electrochemical cell can add a sampling port on the cell body, at additional cost.
• The cell’s quartz window is removable for quick replacement

All sizes listed are common sizes, can be customized according to requirements.
