Description:

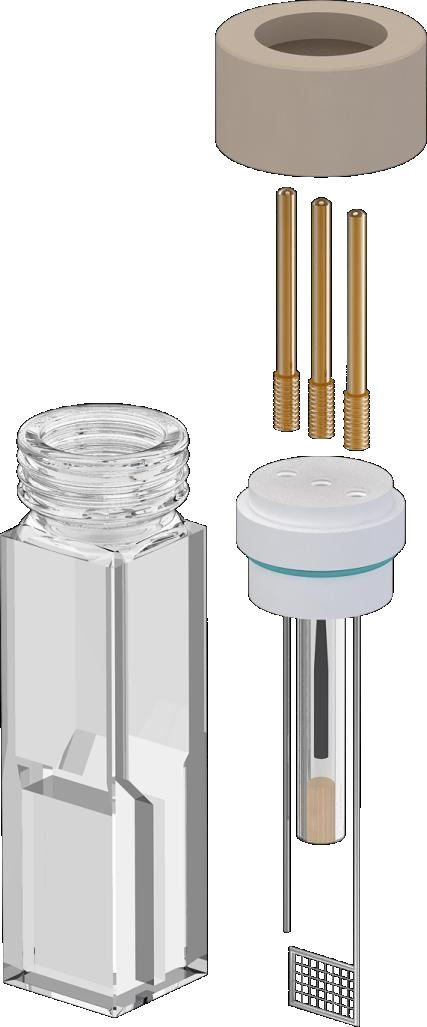

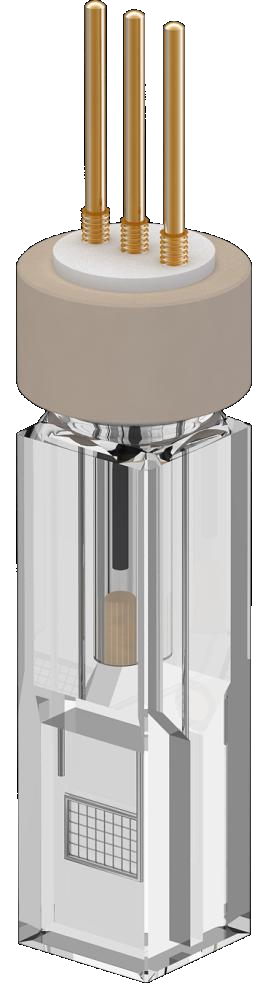

- The cell is made of all-quartz fused and polished, transparent on all sides.
- The optical window of the electrochemical cell is made of quartz, with a high transmittance >95%.
- The cover is made of PTFE.
- The matching electrode of the electrochemical cell is the Ag/AgCl reference electrode (diameter of 3.8mm), the platinum wire counter electrode (diameter of 0.5mm), and the platinum mesh working electrode (6*7mm).
- The working electrode of the electrochemical cell can also be replaced with a glassy carbon or gold disk with a diameter of 3mm according to requirements.
- The light path dimension of electrochemical cell is 8*6.5*1.5mm.
|
Volume (ml) |
Open-type |
|
Light Path dimension 8*6.5*1mm |
